The Clemens Planiermeister levelling device for agriculture, viticulture and landscape engineering.
The gears are driven by a drive shaft. Two robust and low maintenance chains transfer the power to the two counter-rotating rotors. The forward rotor, equipped with Hardox tools, mills and disperses the grass sods and the rear high-speed rotor that is equipped with cutting blades chops, flattens and scarifies the surface to an extremely flat level. The following back-up roller ensures optimal recompacting. The special arrangement of the pressure roller on the cutting blade rotor ensures self-cleaning.
Product Video

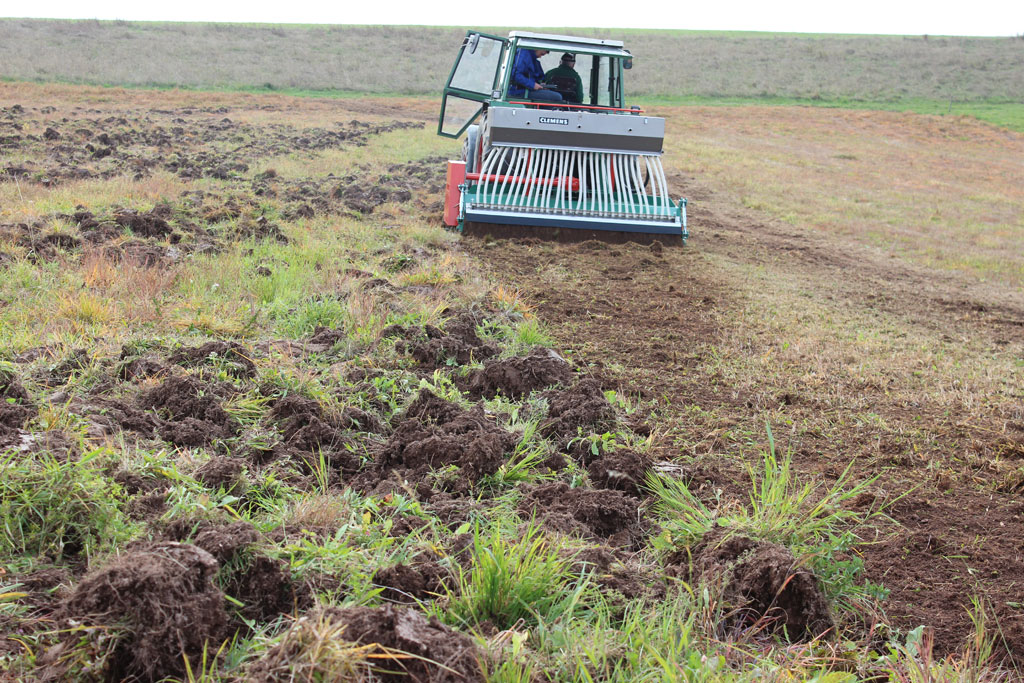

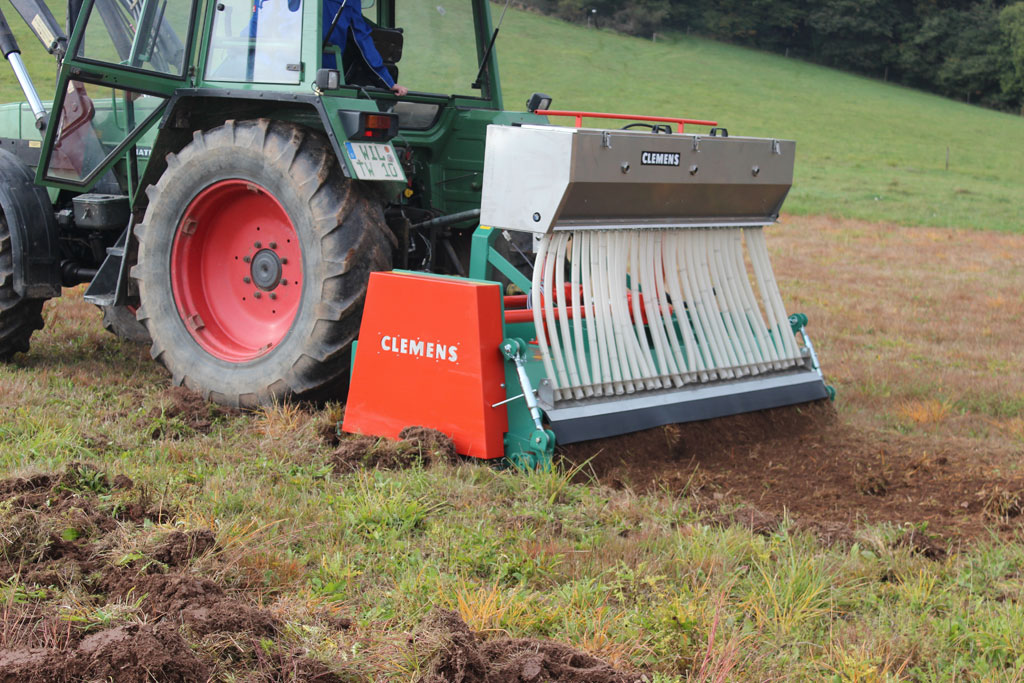

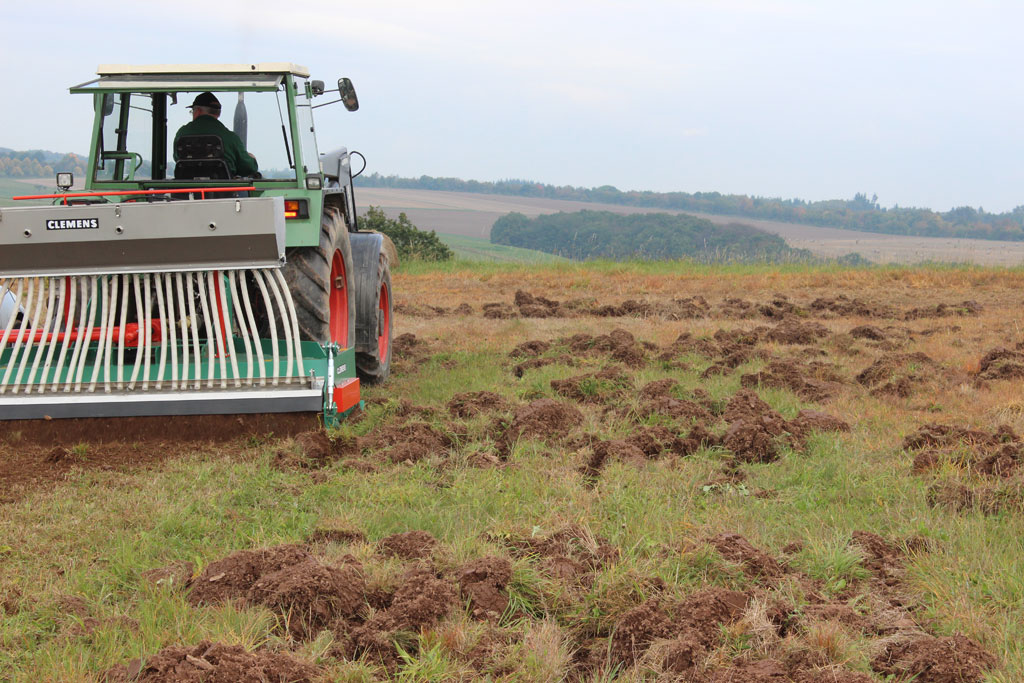

Product Photos
Click on the images below to enlarge.
The Planiermeister
- Works to maintain grasslands over the soil horizon
- Mills, shreds, disperses and levels
- Preserves and improves the existing turf
- Optimal forage quality as no grass sods remain on the surface
- Can be combined with an (optional) sower attachment in a single process
Model Specifications
| Typ 140 | Typ 255 | |
|---|---|---|
| Working width: | approx. 1,400 mm | approx. 2,550 mm |
| Overall width: | approx. 1,610 mm | approx. 2,700 mm |
| Power required: | approx. 36 kW | approx. 50 kW |
