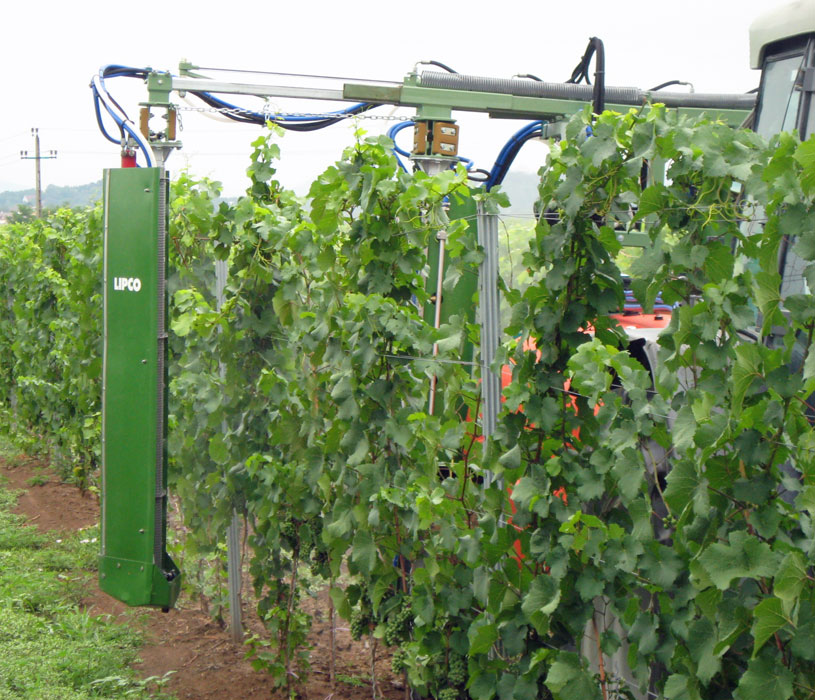

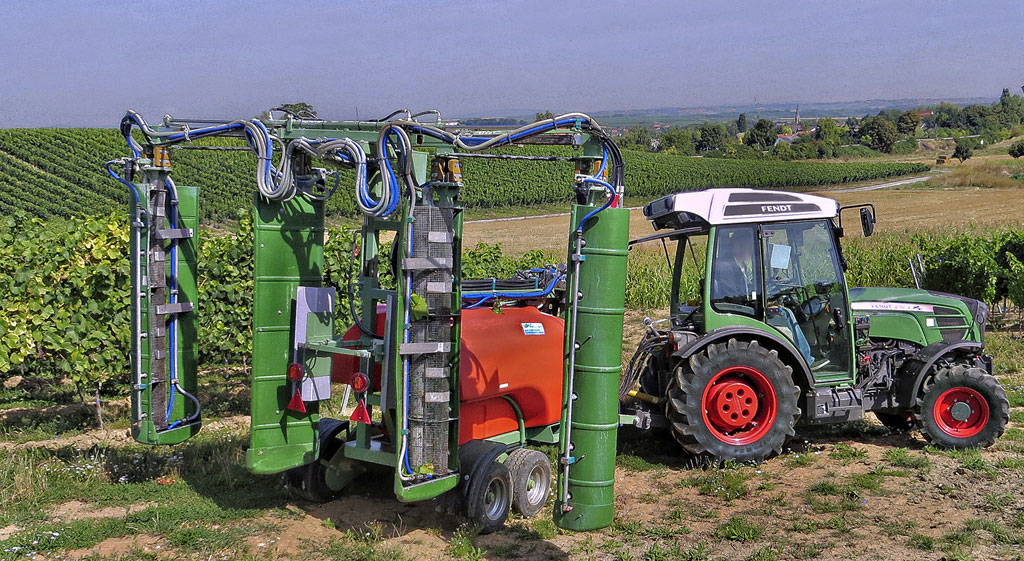

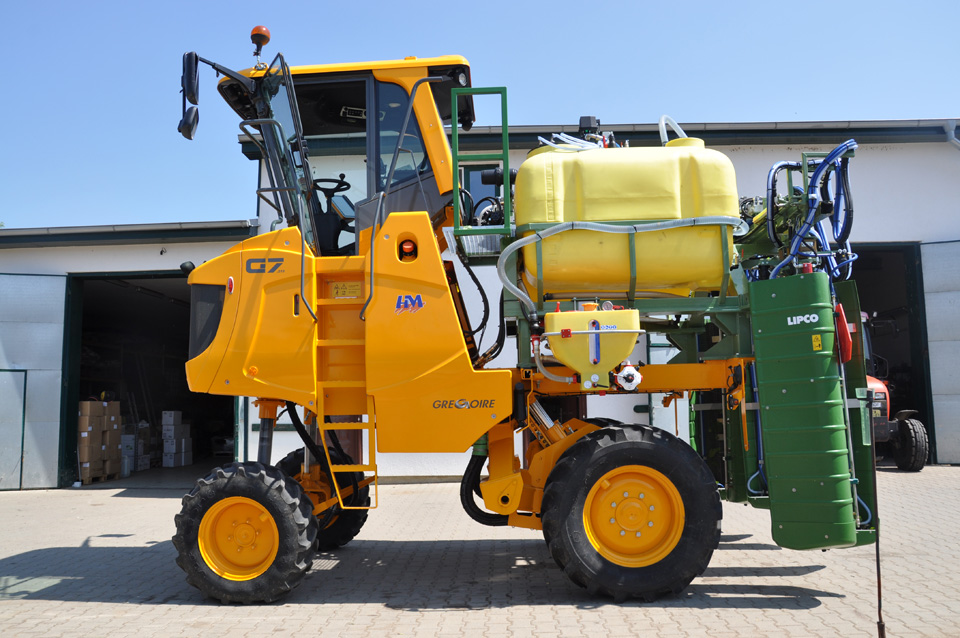

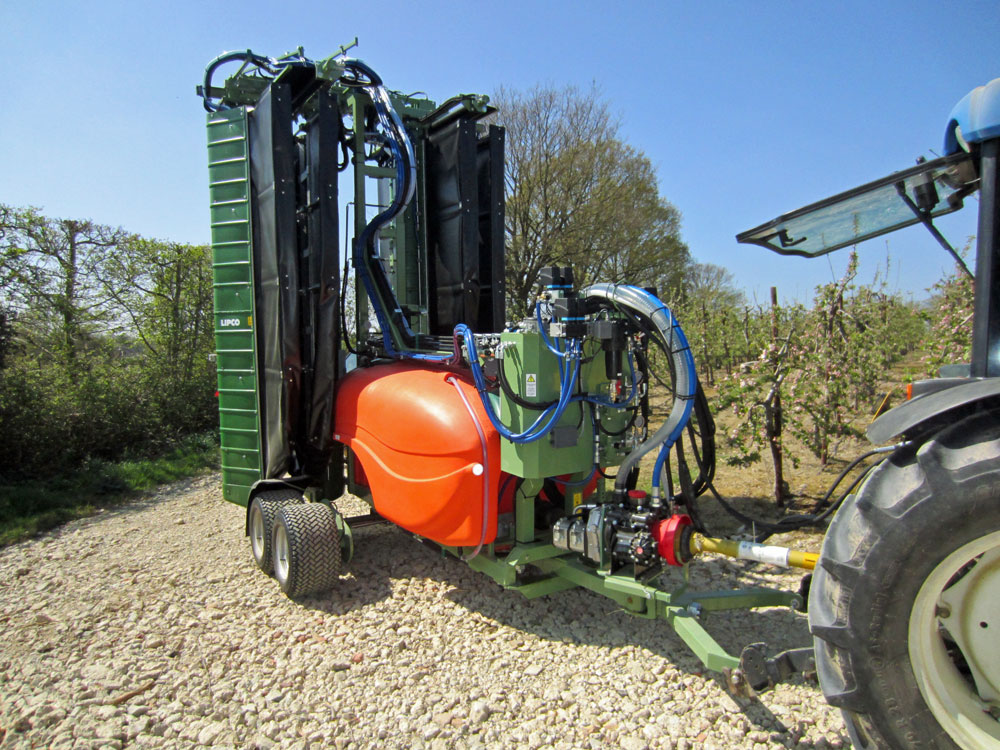

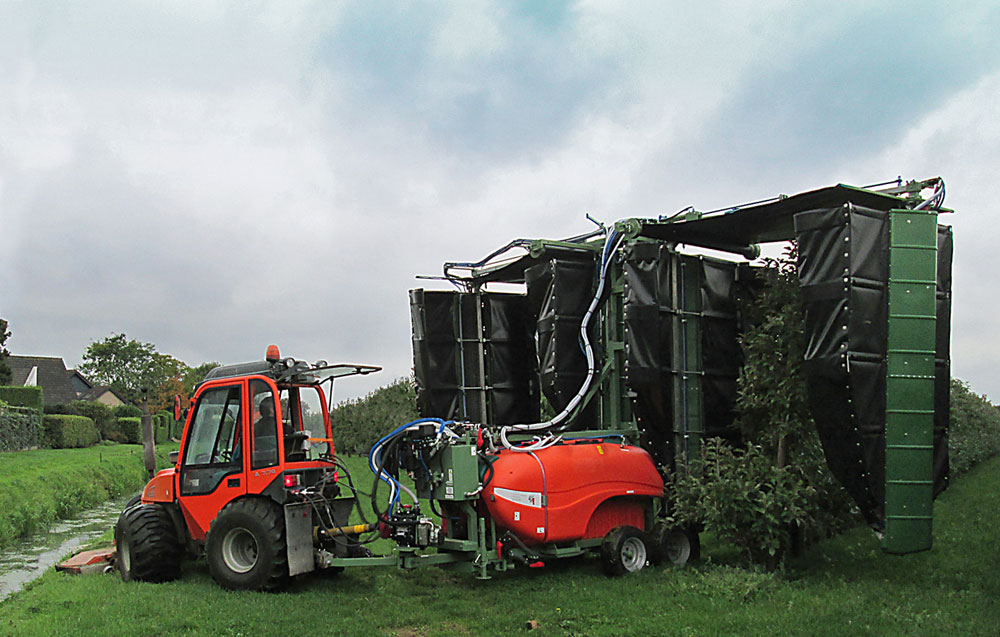

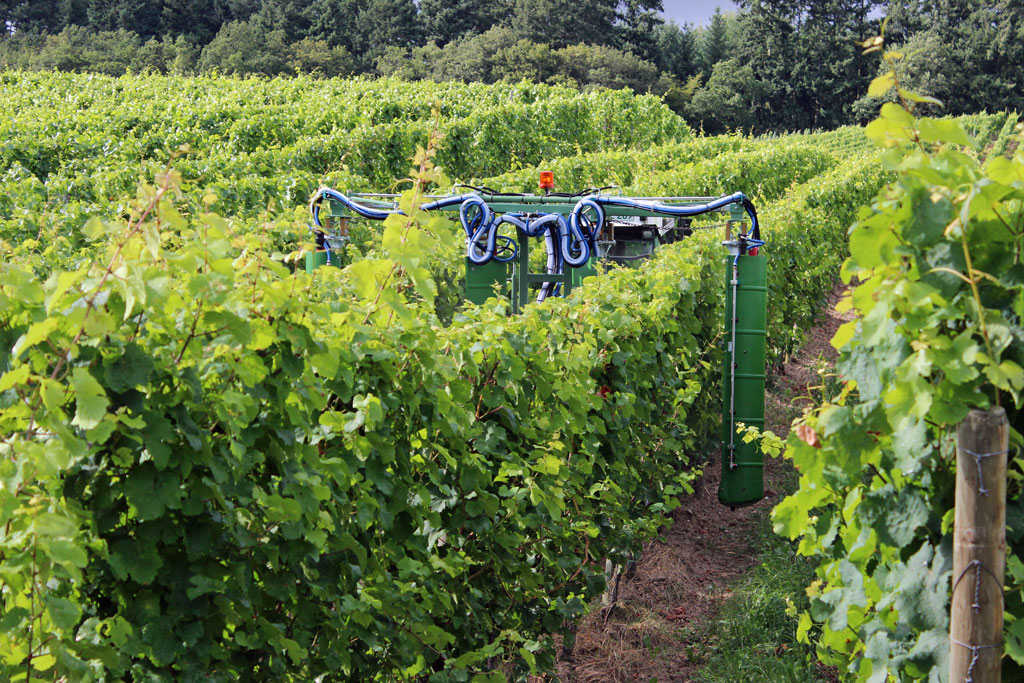

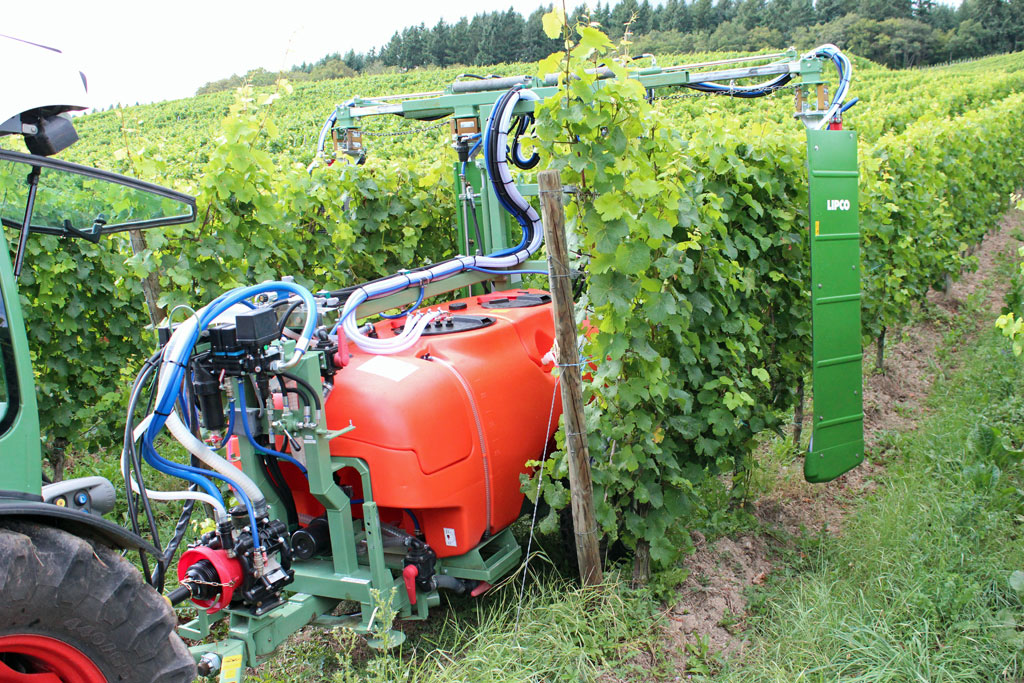

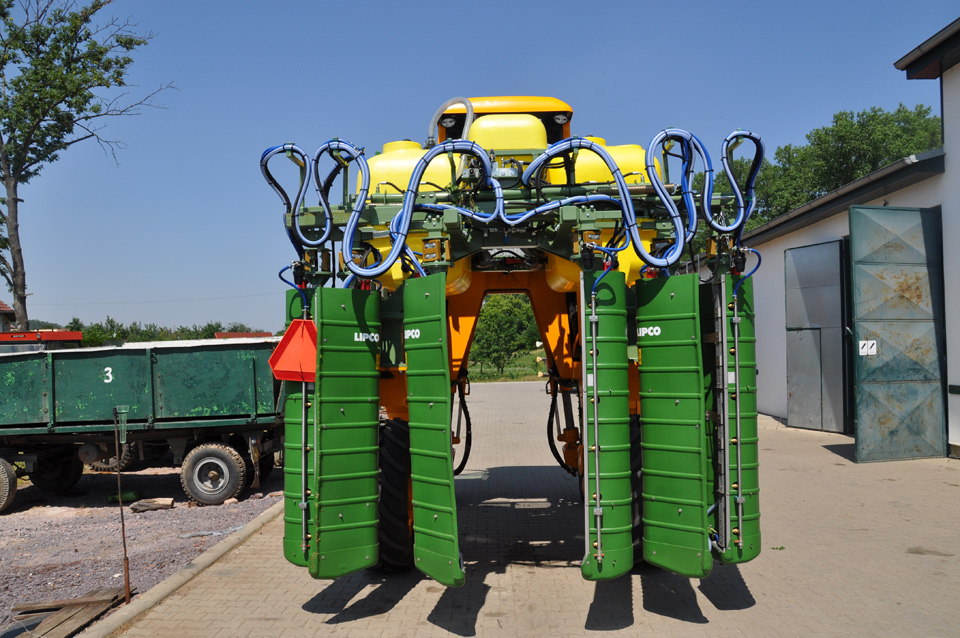

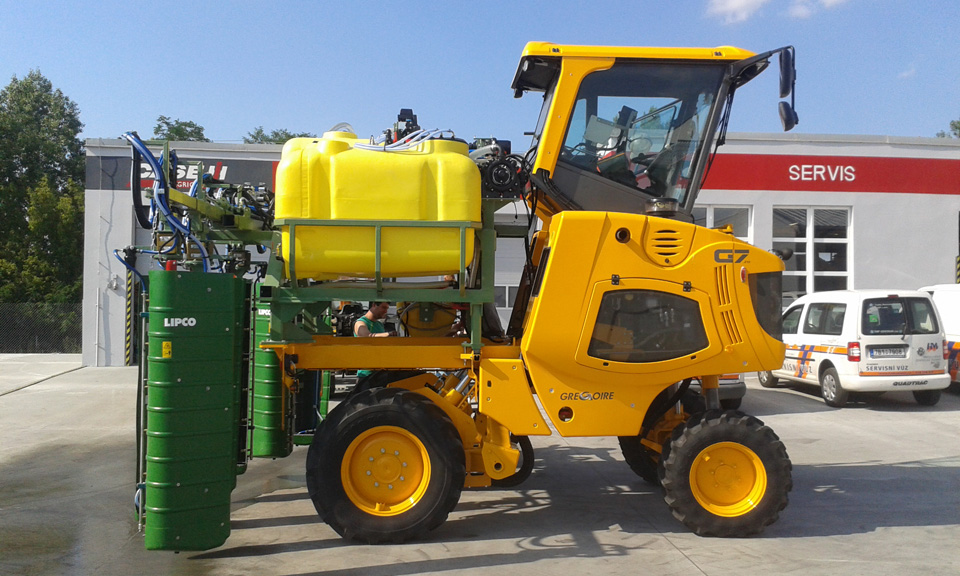

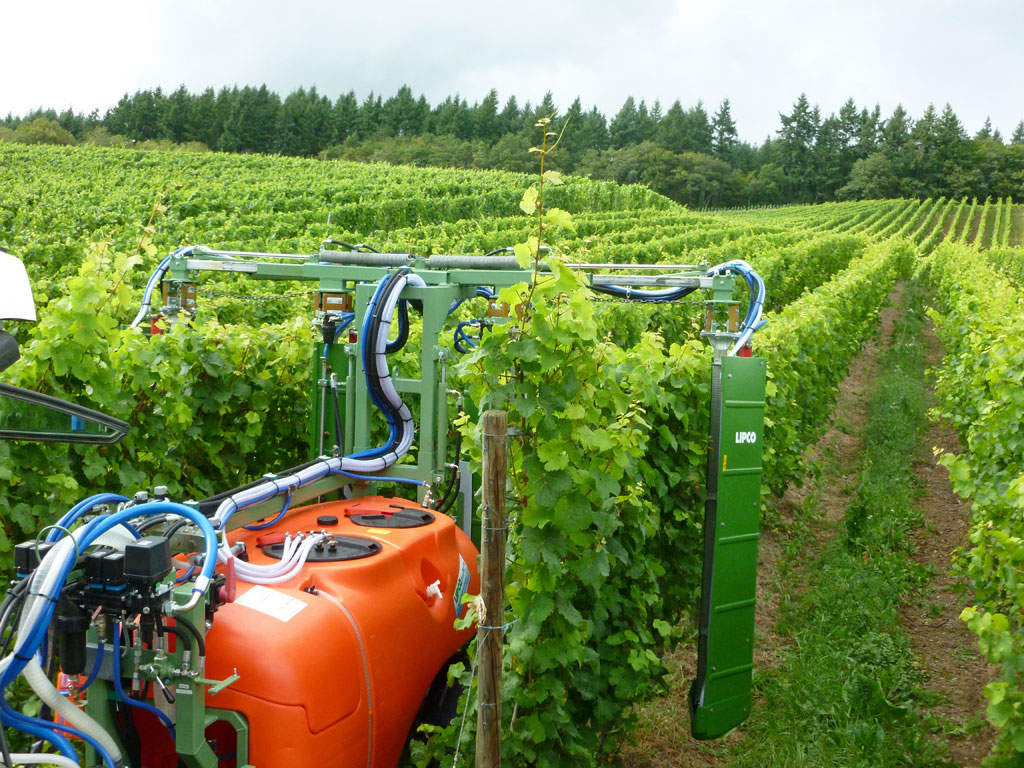

The GSG over-row fan sprayers are a new range in the field of plant protection.

They are fitted with hydraulically driven cross-current fans. With the 2, 3 and 4-row machines, a new configuration of the fans and a recycling system mean that up to 40% less crop protection agent is used in the course of the season.

Special features of the machines include:

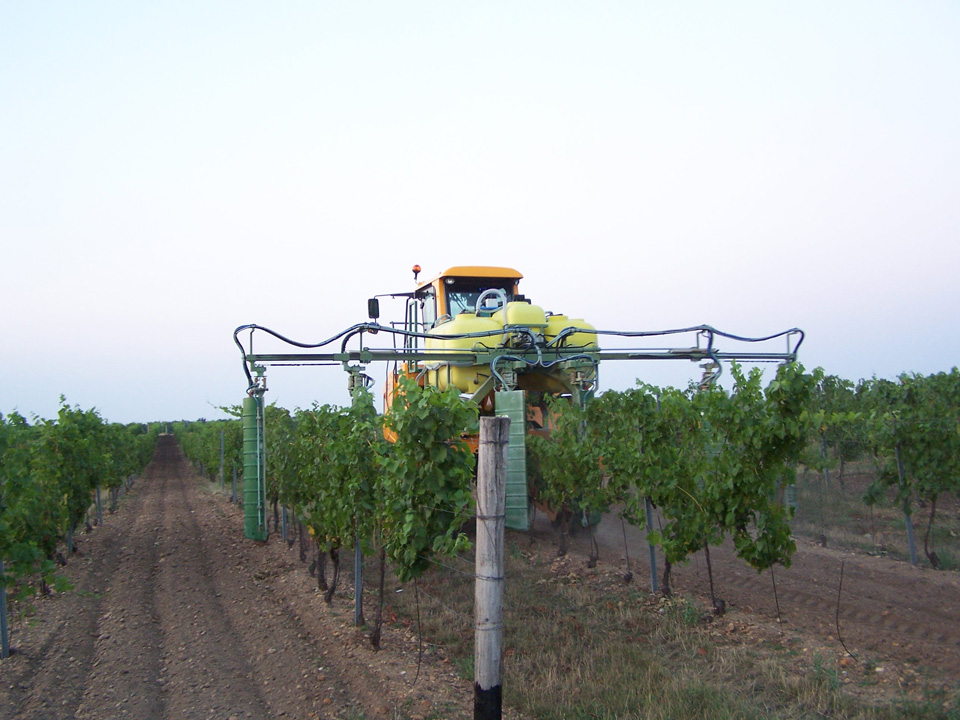

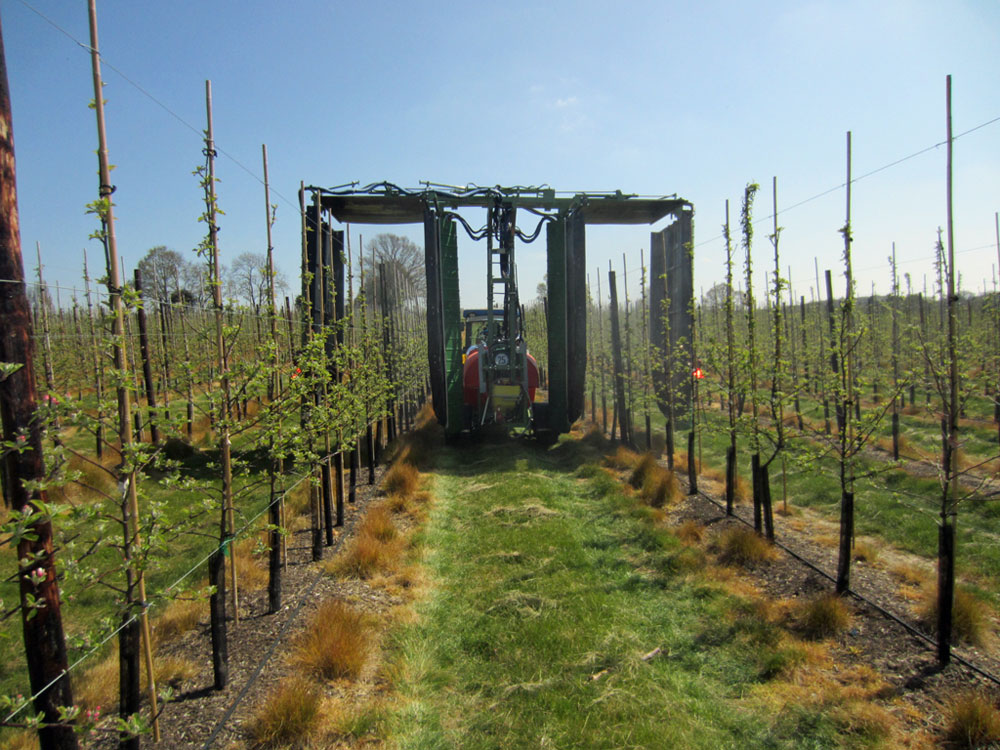

  • large surface coverage, with treatment of up to 4 rows on both sides
  • extremely smooth running at max. speed
  • a new configuration of the fans (suction and pressure side are opposite one another)-as a result, there is significantly less drifting with simultaneous high accumulation of agent and high recycling rates
  • machines with more than 4 cross-current fans are fitted with their own hydraulic system
  • semi-electric or fully electric control

Model Specifications

Weight: 450 kg 1,400 kg
Length: 3,500 mm 2,400 mm
Width: 2,300 mm 2,400 mm
Height: 2,100 mm 2,500 mm
Width adjustment: 200 - 1,000 mm 200 - 1,000 mm
Row width: 2 rows treated on both sides 1,700 – 2,400 mm
