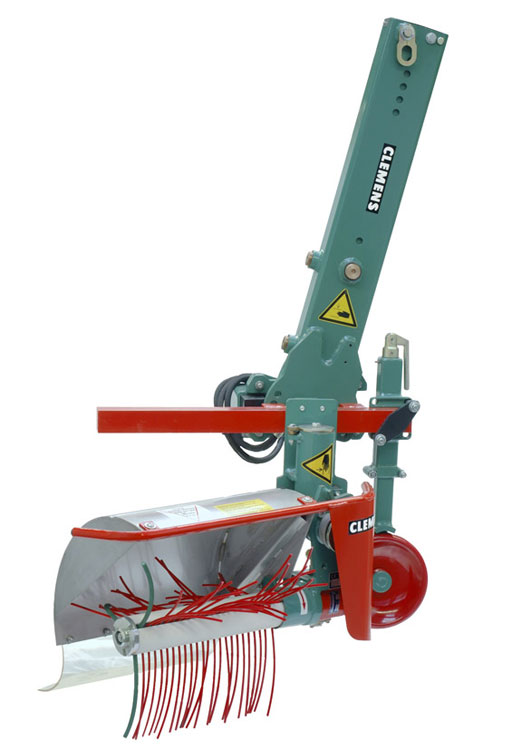

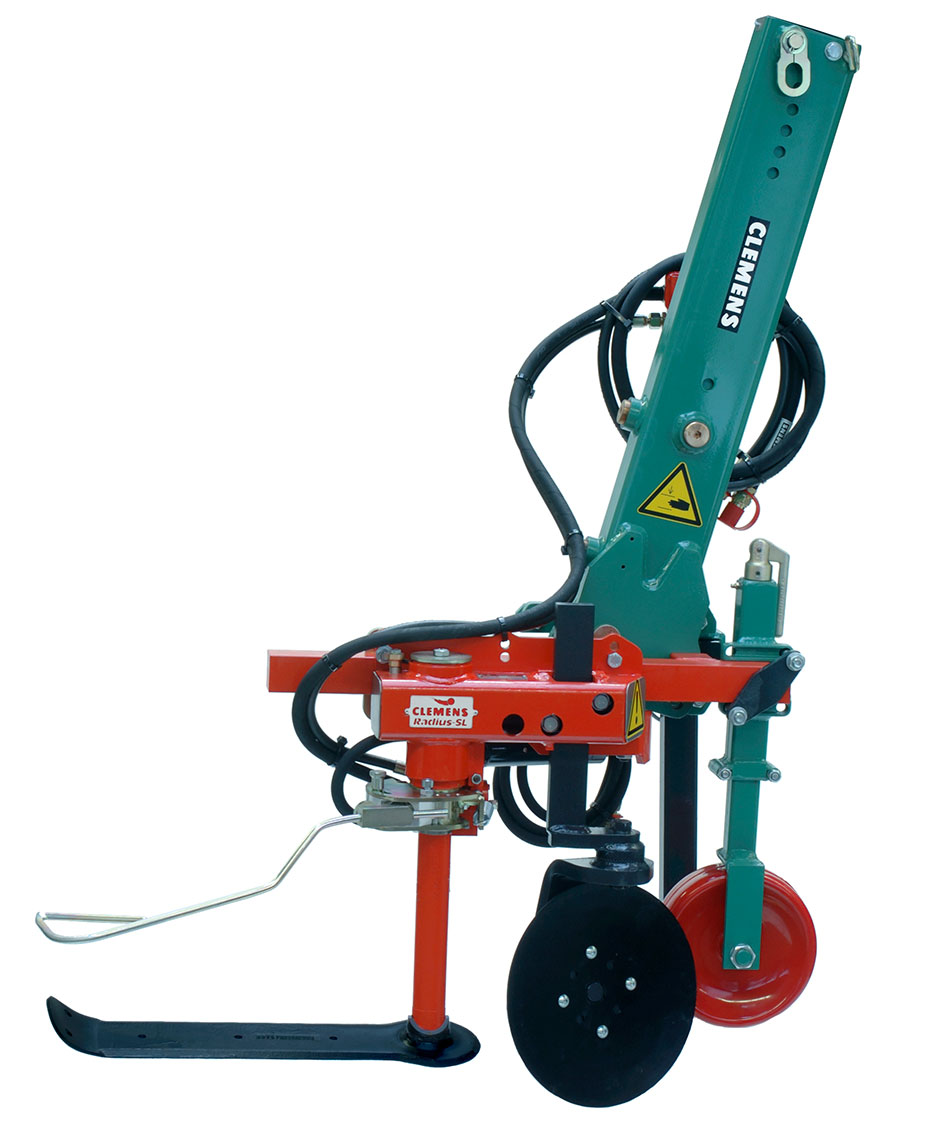

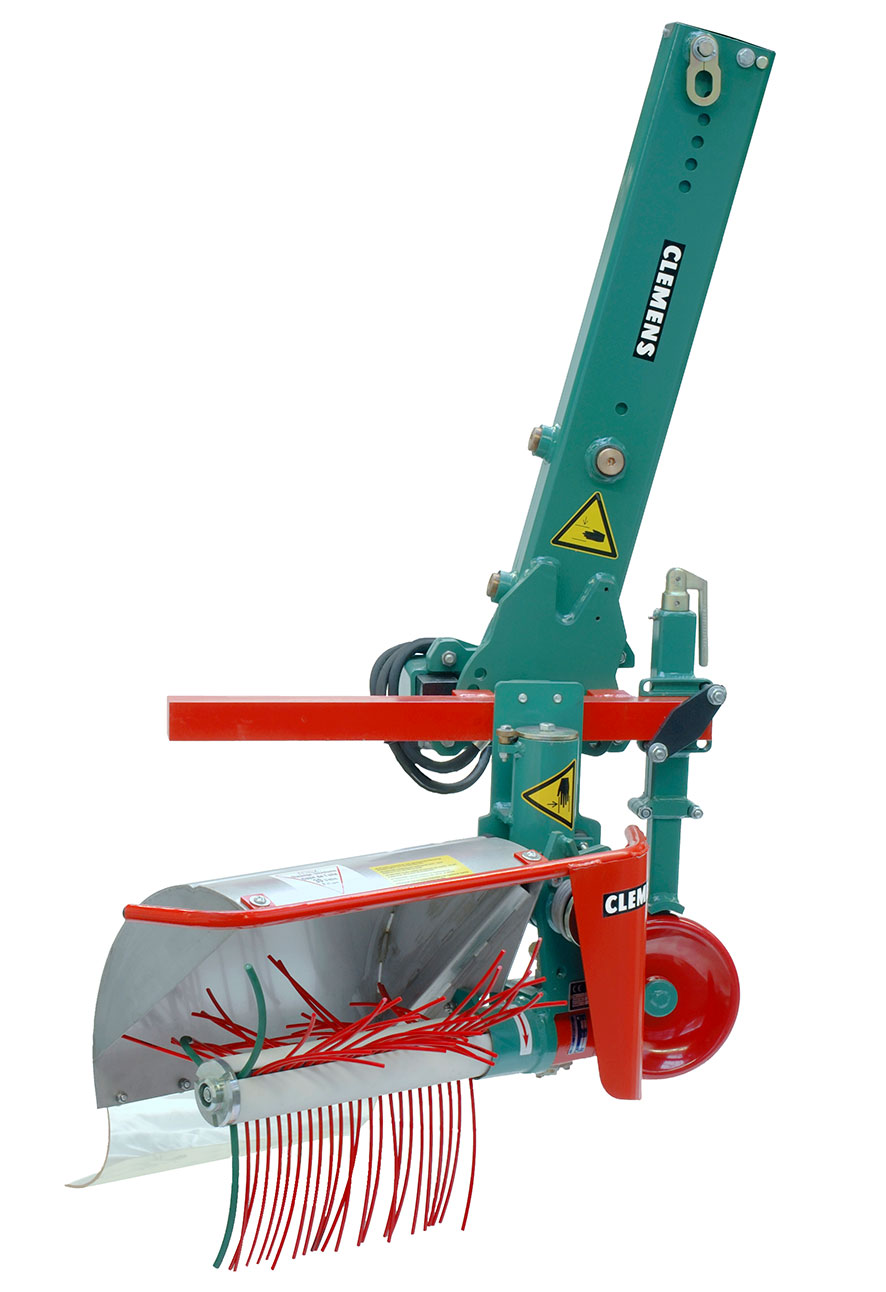

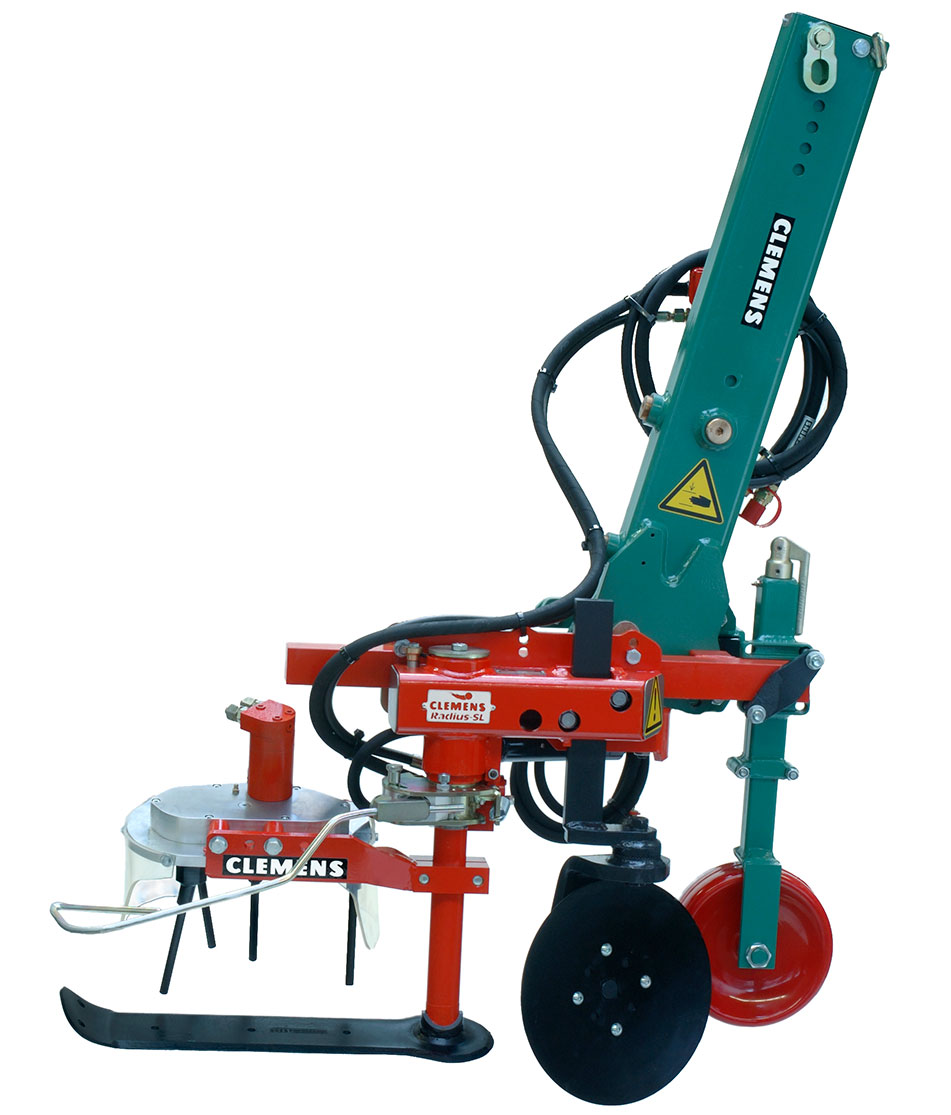

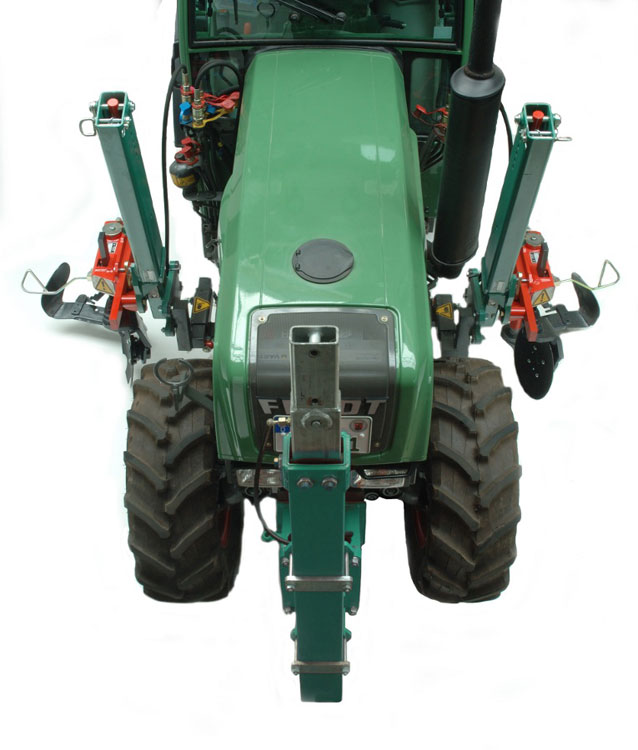

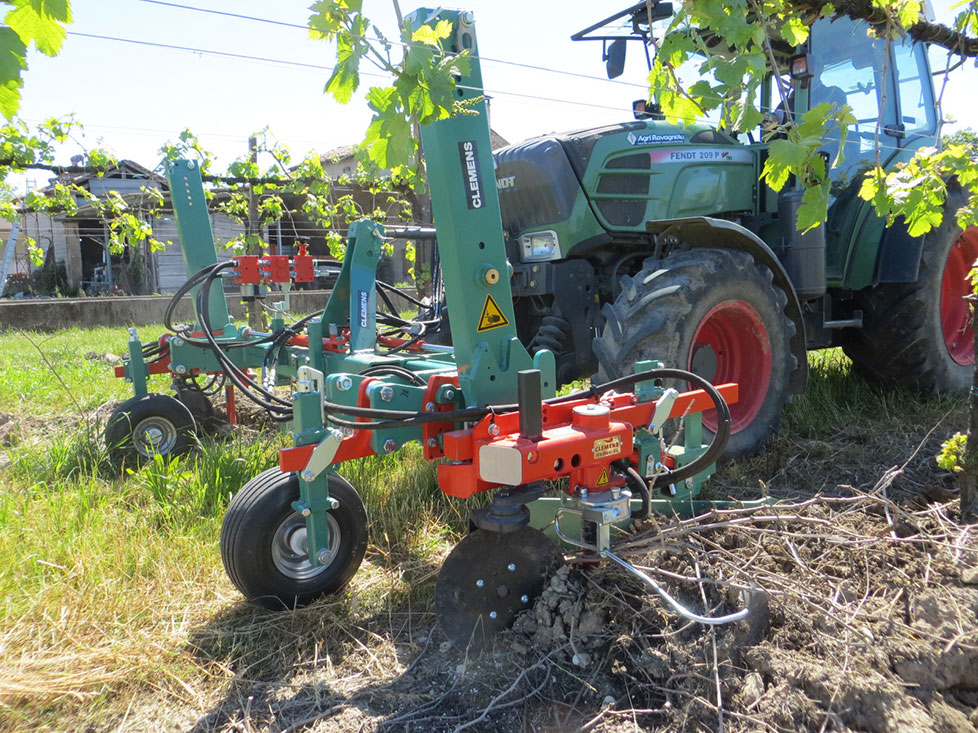

THE CLEMENS COLUMN LIFT S5 FEATURES A COMPACT AND ROBUST DESIGN.

  • compact, robust design

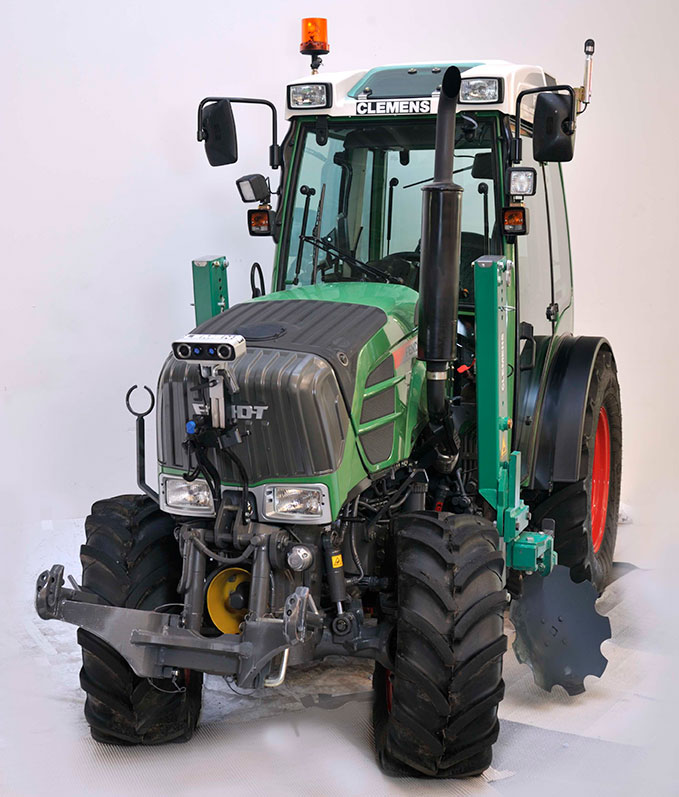

  • for fixed tractors and front 1 or 2-sided attachment to articulated tractors
  • for a range of attachments
  • available with single or dual action (we recommend using a depth wheel for single-action column lifts to control the depth; the dual-action model is only required for extremely hard soil conditions)
  • height controlled by depth wheel or safety bolts
  • models available for left and right

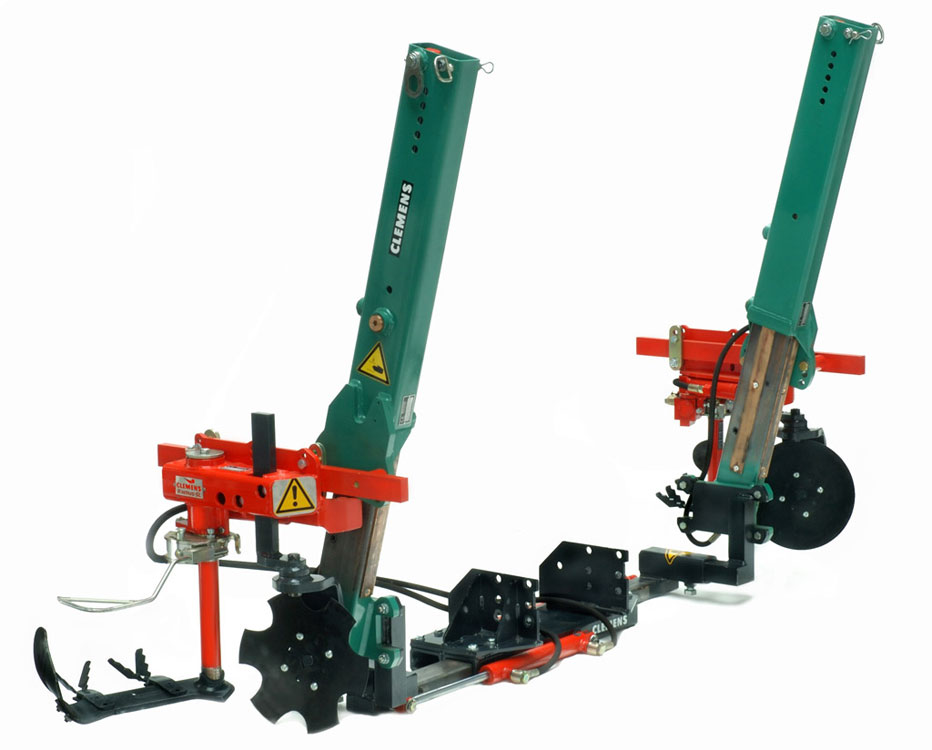

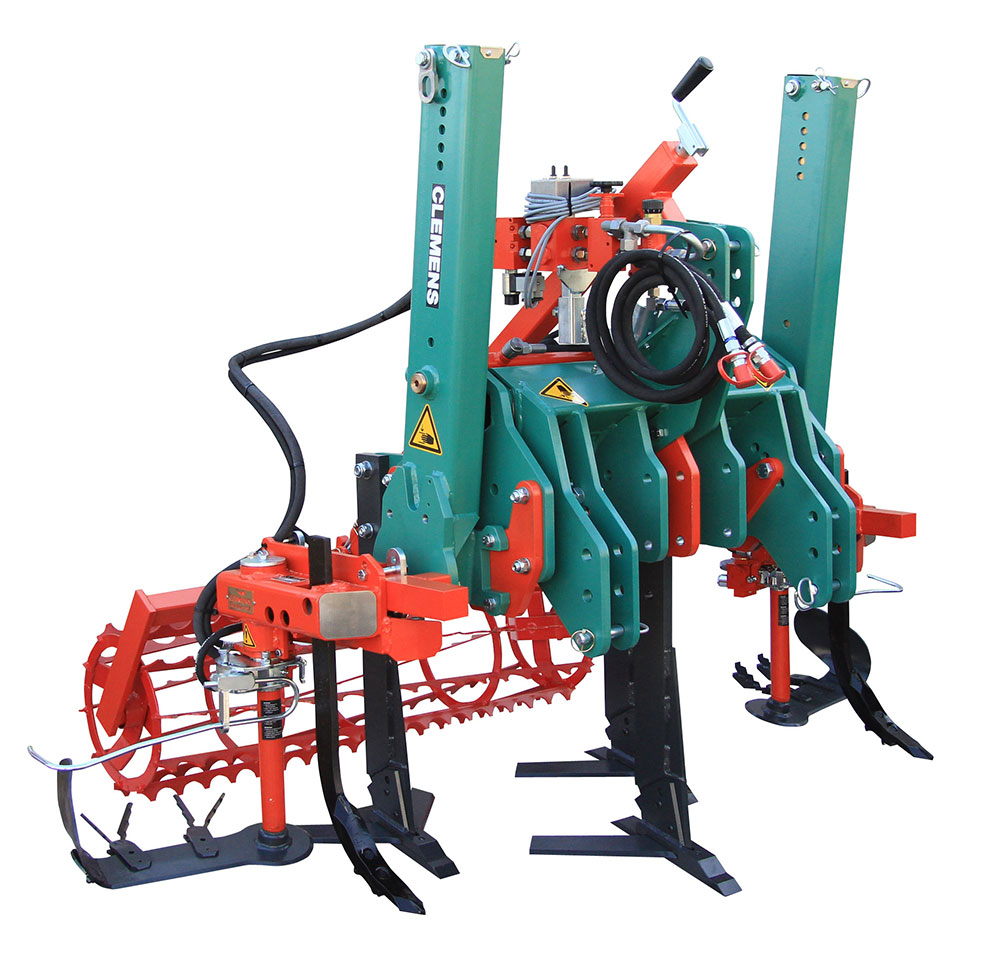

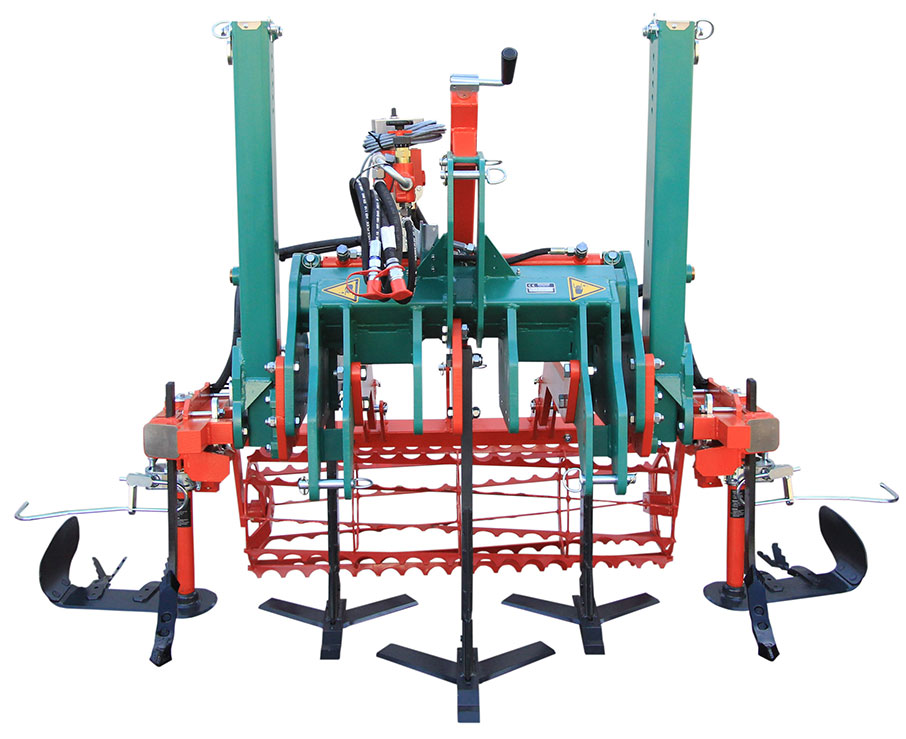

  • 2 lifts can be mounted on one frame with adjustable width, which is then fitted to the bottom of the tractor for row widths from approx. 1,800 mm (depending on the tractor width)



Model Specifications

Weight: 50 kg*
Length: 700 mm*
Width: 200 mm*
Height: 1,000 mm*
Lift (maximum): 500 mm

* = without tools
