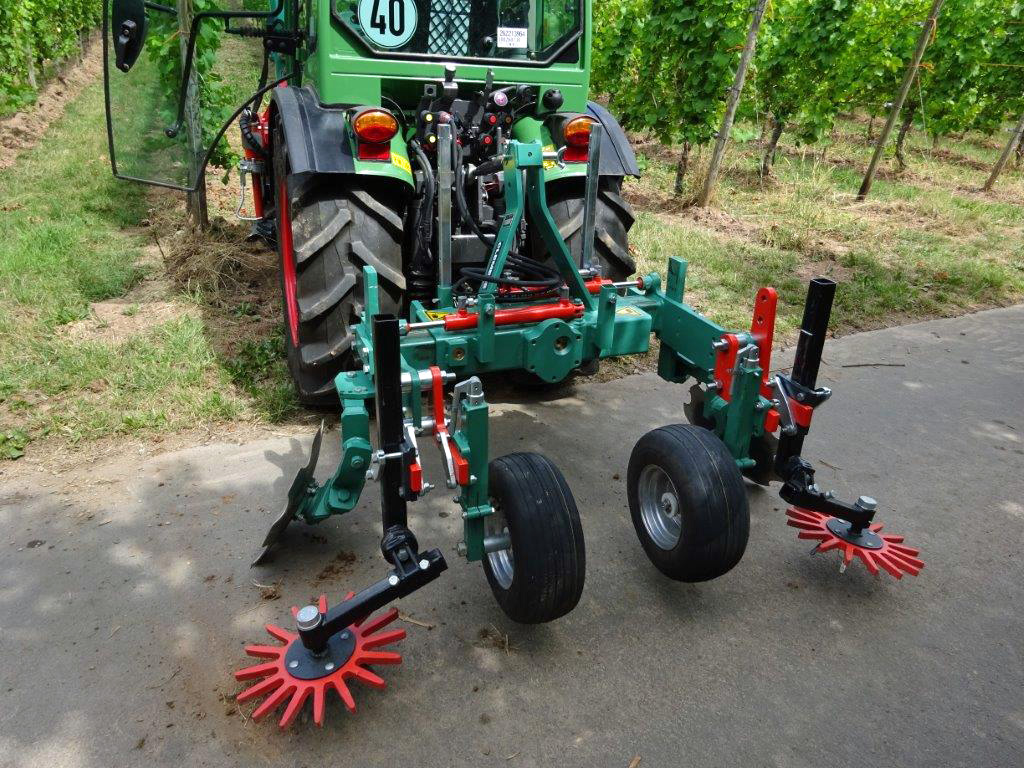

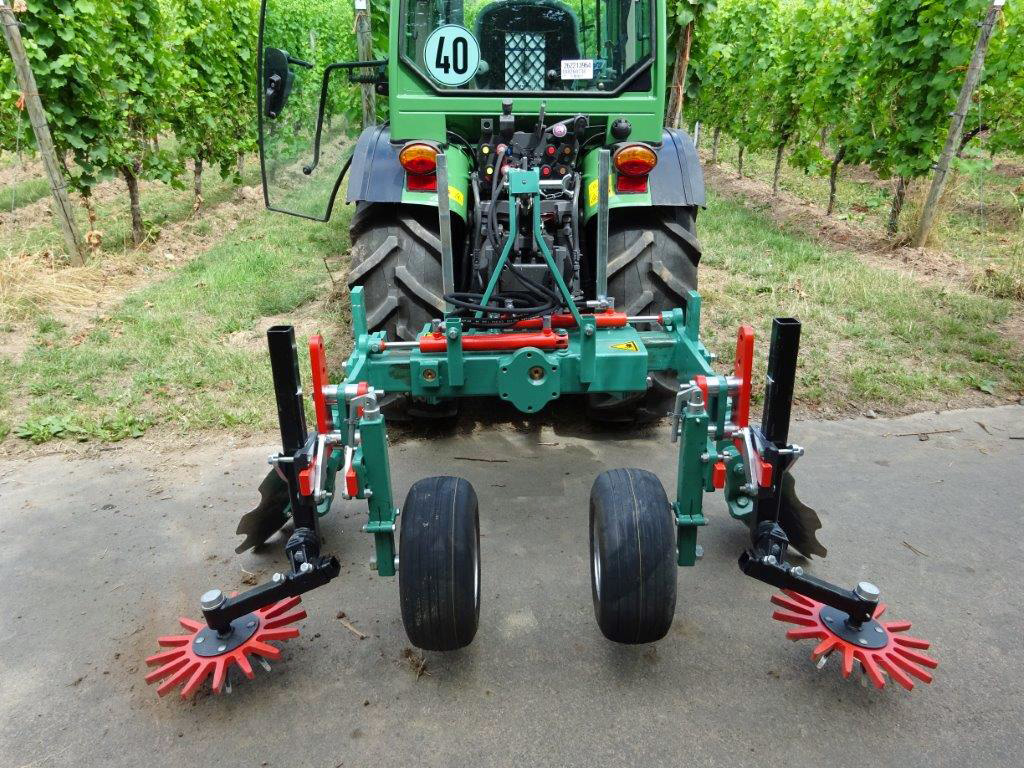

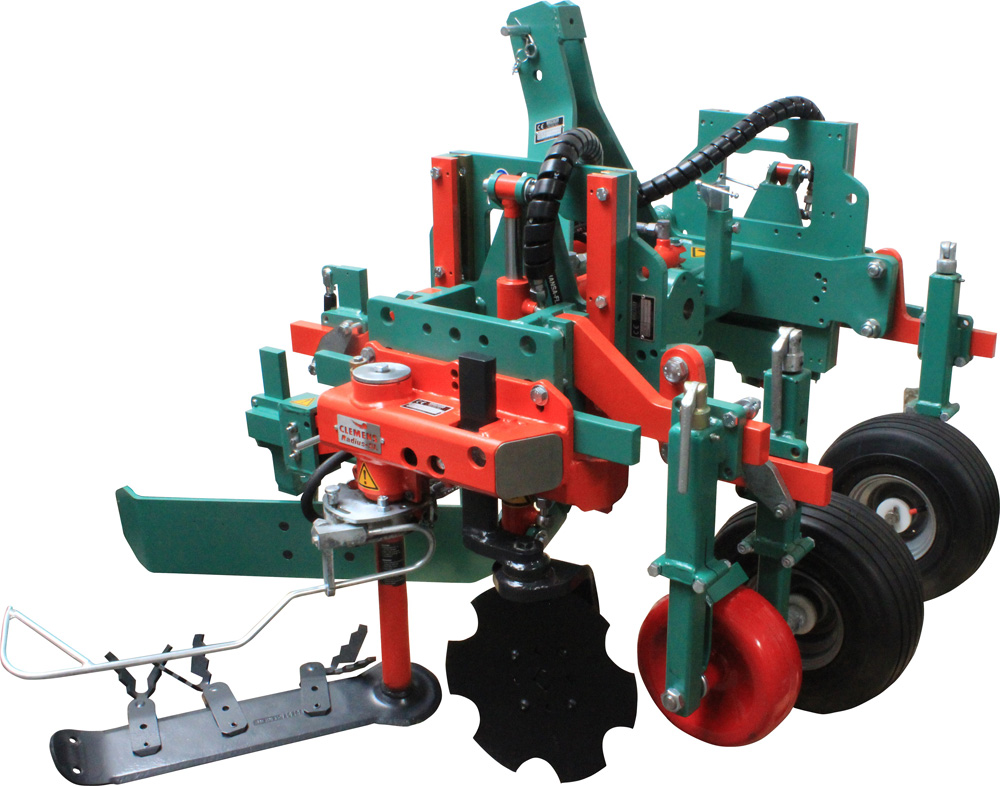

The SB Compact is a rugged solution for narrow lanes with many combination possibilities.
Light implement frames with hydraulic width adjustment for under-vine cultivation for tractor mounting in front or rear. A pump tank hydraulic unit is available for smaller tractors. Ideal for mounting the modern under-vine weeding system RADIUS SL or ROTARY BRUSH. SB1 AND SB2 are available in two different widths for SB MONO the one hand sided solution for different row width with hydraulic width adjustment of 20 inches.
Product Video
Product Photos
Click on the images below to enlarge.
Advantages:
- Hydraulic width adjustment
- Front or rear mounted available
Model Specifications
| SB COMPACT | |
|---|---|
| Weight: | 135 kg |
| Base frame width: | 740 - 1.280 mm |
| Width adjustment: | 500 mm |
| Row width with Radius SL 370: | 1.480 - 2.020 mm |
| Row width with Radius SL 500: | 1.740 - 2.280 mm |
| Row width with Radius SL 620: | 1.980 - 2.520 mm |
Attachment Options
